Artistic Iron Works in, Regina, Saskatchewan, Canada is a supplier of easy to assemble, do-it-yourself steel gate frames and gate braces for fence gates. Two great choices to choose from available in many size options. Artistic Iron Works in, Regina, Saskatchewan, Canada is a supplier of easy to assemble, do-it-yourself steel gate frames and gate braces for fence gates. Two great choices to choose from available in many size options.
Gate Frames & Gate Braces are steel frames and braces that enable you to build a strong, lasting gate. Wrought Iron Gates are complete gates that you simply install, then bolt on an ornamental design.
Click on picture or scroll down for
complete details on each of our different gates.
 |
 |
 |
 |
 |
GF30, GF42, GF52 These Gate Frames can build a gate up to 6 ft wide and 4, 5, or 6 ft high. |
GB1 Set of 4 braces used with four 2x4's to support most gates. |
|
G42 Iron gate 42" high for 36, 40, 44, 48 or 52" openings with P4 design bolted in. |
G64 Iron gate 64" high for 36 40, 44, 48 or 52" openings with P7 design bolted in. |
Enlarge Photo |
|

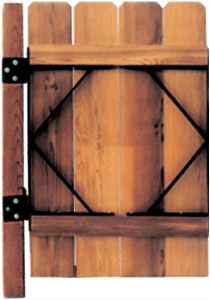

BUILD YOUR GATE IN MINUTES
These GATE FRAMES with attached hinges are strong, durable and easy to use. Simply cut two - 2x4’s, two inches shorter than the opening. Bolt on GATE FRAMES, nail on boards and hang your gate. Use two pair of frames for double gates.
Recommended width 28 to 72 inches.
|
|
Enlarge Photo |
Fence
Height |
Stock
No. |
*Price
(per set) |
| 4' |
GF30 |
$44.00 |
| 5' |
GF42 |
$47.85 |
| 6' |
GF52 |
$51.70 |
| Need Help? Click here for our help/order desk. |
*Prices are suggested retail.
Wood pickets, freight & taxes extra.
|
Click Here for
More Information
|
Use two sets of frames for double gates!
Artistic Steel Gate Braces enable you to build a strong gate frame, using four 2 x 4’s. Simply cut two 2 x 4’s two inches shorter than your gate opening -- they are used for the top and bottom of your gate frame. Now cut two more 2 x 4’s for the sides of your gate frame -- these will set the height of your gate frame. Suggested length is 25 1/2 inches shorter than the pickets you are using. If you cut the inside ends of the 2 x 4’s on a slight angle, you will get a tighter fit, (see assembling picture below).
Now screw the 2 x 4’s to the Gate Braces, nail or screw your pickets to the top and bottom 2 x 4’s. Your gate is ready to hang.
|
Enlarge Photo |
Artistic Iron Gates are 42 or 64 inches high and fit openings of 36, 40, 44, 48 and 52 inches wide. The opening is the Inside Distance between the posts. The gate is made 5" smaller than the opening to allow for the hinges and the latch. The adjustable hinges will allow for approximately 1" adjustment each way. The hinges, latch and hardware are supplied. These gates must be installed between the posts, not to the surface (See pictures). These gates will take one ARTISTIC BOLT IN DESIGN (sold separately). Paint is a black primer coat.
Customer to supply total opening measurement (post to post).
Enlarge Photo |
|
Post - Post
Opening |
Stock No. |
Cost |
| 35" - 37" |
G42-36 |
$192.50 |
| 39" - 41" |
G42-40 |
$198.00 |
| 43" - 45" |
G42-44 |
$203.50 |
| 47" - 49" |
G42-48 |
$209.00 |
| 51" - 53" |
G42-52 |
$214.50 |
| Need Help? Click here for our help/order desk. |
Design, freight & taxes extra.
|
|

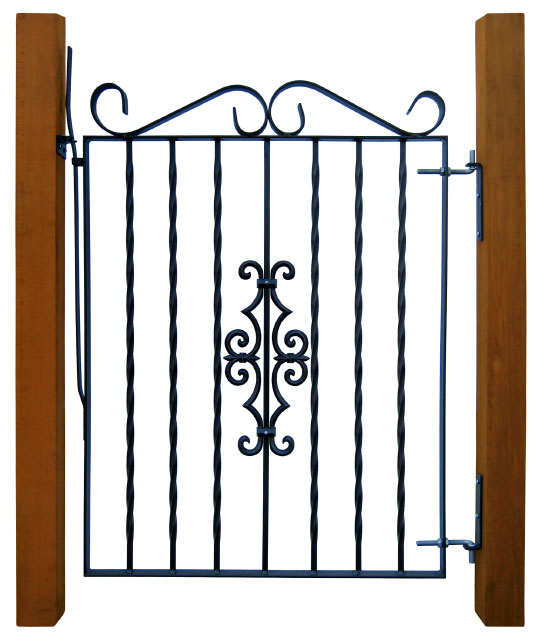

Picture shows Standard Gate 42 inches high with P4 design added.
|
Post - Post
Opening |
Stock No. |
Cost |
| 35" - 37" |
G64-36 |
$291.50 |
| 39" - 41" |
G64-40 |
$300.30 |
| 43" - 45" |
G64-44 |
$309.10 |
| 47" - 49" |
G64-48 |
$317.90 |
| 51" - 53" |
G64-52 |
$326.70 |
| Need Help? Click here for our help/order desk. |
Design, freight & taxes extra.
|
|
Enlarge Photo |
|

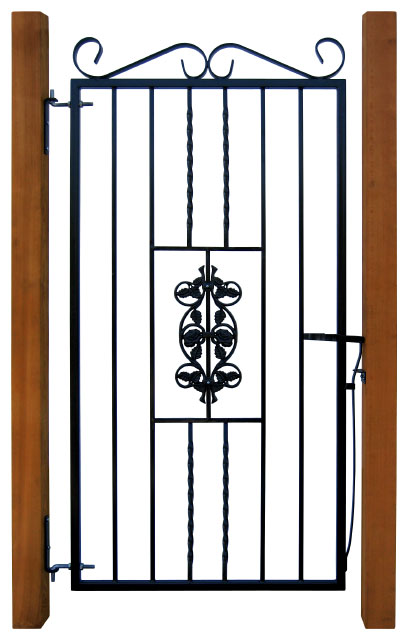

Picture shows Standard Gate 64 inches high with P7 design added.
|
Bolt In Gate Design
|
$26.40 each
P4
|
|
 |
|
