Artistic Iron Works in, Regina, Saskatchewan, Canada is a supplier of easy to assemble, do-it-yourself steel step frames available in conventional, side and crossover styles. Artistic Iron Works in, Regina, Saskatchewan, Canada is a supplier of easy to assemble, do-it-yourself steel step frames available in conventional, side and crossover styles.
Build Complete Steps with these Step Frames
You can build a complete set of steps with these "STEP FRAMES". They are available in three types as shown below. Each type is available in 2 to 9 risers. These frames are manufactured with 2 x 2 x 3/16 angle iron and 2 x 3/16 flat iron and are predrilled to accommodate 2 x 6 or 2 x 12 planks.
(click on the pictures above for details and prices)
| Conventional Step Frames |
|
(go to top of page) |
|
Artistic Steps are easy to install... simply bolt step frames to the floor joist, (3 ft. apart). Bolt front of step to the sidewalk, piles or blocks. Bolt planks to the step frames, 4 on the landing and 1 for each tread. Now bolt the railings to the planks to complete your step. A coat of paint should now be applied.
Landing:
45" deep by 60" or 72" wide (width depends on plank length)
Treads:
11" wide by 60" or 72" long
Risers:
7.5" high
Paint:
Black primer coat
|
|

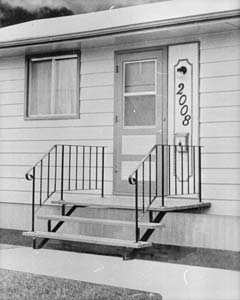

3 Riser Step with Railings
|
Step
Size |
Total
Height |
Step Frames |
36" High Railings |
Stock
Number |
*Price
Pair |
Stock
Number |
*Price
Each |
2 Riser |
15" |
2S |
$170.50 |
2R48-36 |
$179.30 |
3 Riser |
22.5" |
3S |
$210.10 |
3R48-36 |
$209.00 |
4 Riser |
30" |
4S |
$255.20 |
4R48-36 |
$234.30 |
5 Riser |
37.5" |
5S |
$295.90 |
5R48-36 |
$259.60 |
6 Riser |
45" |
6S |
$339.90 |
6R48-36 |
$301.40 |
7 Riser |
52.5" |
7S |
$432.30 |
7R48-36 |
$343.20 |
8 Riser |
60" |
8S |
$484.00 |
8R48-36 |
$377.30 |
9 Riser |
67.5" |
9S |
$537.90 |
9R48-36 |
$422.40 |
| Need Help??? CLICK HERE For Our Help/Order Desk. |
*Prices are suggested retail. Planks, freight & taxes extra.
Step frames are drilled for 2 x 12 or
2 x 6 planks. Hardware supplied with frames.
Building Code may require 36" high railings
(Please Check)
| Side Step Frames |
|
(go to top of page) |
|
Artistic Steps are easy to install... simply bolt one step frame to the floor joist. Bolt other frame to the sidewalk, piles or blocks. Set frames 3 ft. apart. Now bolt planks to the step frames, 5 on the landing and 1 for each tread (planks must be cut 48" long). Now bolt the railings to the planks to complete your step. A coat of paint should now be applied.
Landing:
48" by 56" (56" runs along the wall)
Treads:
11" wide by 48" long
Risers:
7.5" high
Paint:
Black primer coat
|
|

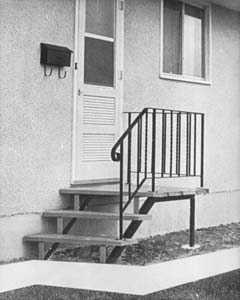

3 Riser Side Step with Railing
(side steps can hang right or left)
|
Step
Size |
Total
Height |
Step Frames |
36" High Railings |
Stock
Number |
*Price
Pair |
Stock
Number |
*Price
Each |
2 Riser |
15" |
2SS |
$202.40 |
2RS65-36 |
$327.80 |
3 Riser |
22.5" |
3SS |
$250.80 |
3RS65-36 |
$354.20 |
4 Riser |
30" |
4SS |
$295.90 |
4RS65-36 |
$388.30 |
5 Riser |
37.5" |
5SS |
$343.20 |
5RS65-36 |
$411.40 |
6 Riser |
45" |
6SS |
$388.30 |
6RS65-36 |
$460.90 |
7 Riser |
52.5" |
7SS |
$471.90 |
7RS65-36 |
$500.50 |
8 Riser |
60" |
8SS |
$557.70 |
8RS65-36 |
$540.10 |
9 Riser |
67.5" |
9SS |
$639.10 |
9RS65-36 |
$590.70 |
| Need Help??? CLICK HERE For Our Help/Order Desk. |
*Prices are suggested retail. Planks, freight & taxes extra.
Step frames are drilled for 2 x 12 or
2 x 6 planks. Hardware supplied with frames.
Building Code may require 36" high railings
(Please Check)
| Crossover Step Frames |
|
(go to top of page) |
|
Artistic Steps are easy to install... simply bolt one step frame to the floor joist, bolt other frame to the sidewalk, piles or blocks. Set frames 3 ft. apart. Bolt planks to the step frames, 5 on the landing and 1 for each tread (Cut planks 48" long). Now bolt the railing to the planks to complete your step. A coat of paint should now be applied.
Landing:
48" by 56" (56" runs along the wall)
Treads:
11" wide by 48" long
Risers:
7.5" high
Paint:
Black primer coat
|
|

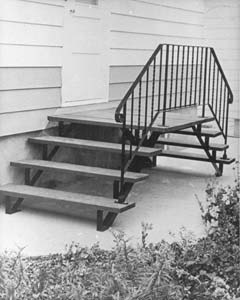

4 Riser Crossover Step
|
Step
Size |
Total
Height |
Step Frames |
36" High Railings |
Stock
Number |
*Price
Pair |
Stock
Number |
*Price
Each |
2 Riser |
15" |
2SC |
$275.00 |
2RC60-36 |
$280.50 |
3 Riser |
22.5" |
3SC |
$345.40 |
3RC60-36 |
$336.60 |
4 Riser |
30" |
4SC |
$431.20 |
4RC60-36 |
$426.80 |
5 Riser |
37.5" |
5SC |
$518.10 |
5RC60-36 |
$479.60 |
6 Riser |
45" |
6SC |
$600.60 |
6RC60-36 |
$554.40 |
7 Riser |
52.5" |
7SC |
$683.10 |
7RC60-36 |
$636.90 |
8 Riser |
60" |
8SC |
$764.50 |
8RC60-36 |
$722.70 |
9 Riser |
67.5" |
9SC |
$847.00 |
9RC60-36 |
$776.60 |
| Need Help??? CLICK HERE For Our Help/Order Desk. |
*Prices are suggested retail. Planks, freight & taxes extra.
Step frames are drilled for 2 x 12 or 2 x 6 planks. Hardware supplied with frames.
 |
|
